Clouded Leopard 5 Gang Grid & Plate Switch Only

Trader Clouded Leopard Series Switch Plates

Clouded Leopard - Stylish, Subtle, Refined Blends In With Today’s Modern Decor.

Clouded Leopard Is A Slim Option With A Matt Finish. Clouded Leopard Has A Full Range Of Switches & Sockets With The Added Option Of Push Button Switches.

• Switches Are Rated 16ax/20a 250v~ And Approved To AS/NZS60669-1
• Fits Standard Australian Wall Boxes And Mounting Accessories That Use 84mm Mounting Centres
• Uses Brass Tunnel Terminals That Have The Screws Backed Out For Easier Installation Of Cabling. Switches Are Two Way With Looping Terminal And Suit 4 X 1.5mm2 Cabling With 4.1mm Bore.
• Slotted Head Screws For The Terminals
• Uses ‘Cat Flap’ Screw Covers For Ip Rating Or Mounting Screws
• Plates Suit Trader Meerkat MESWC mecs, Including TV And Data; And Clipsal 30 Style Mechs And Accessories

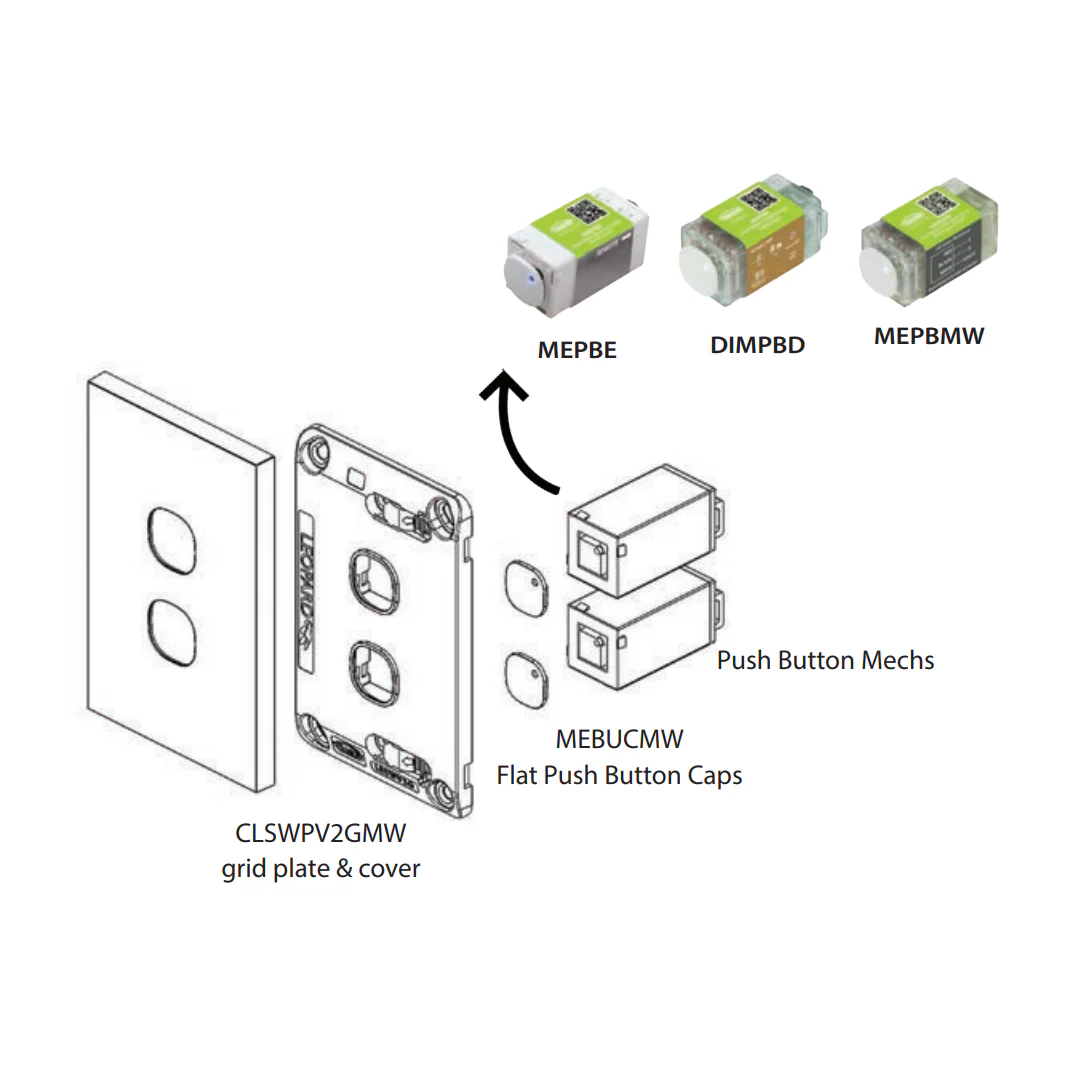

• Typical Example Of Size In Diagram

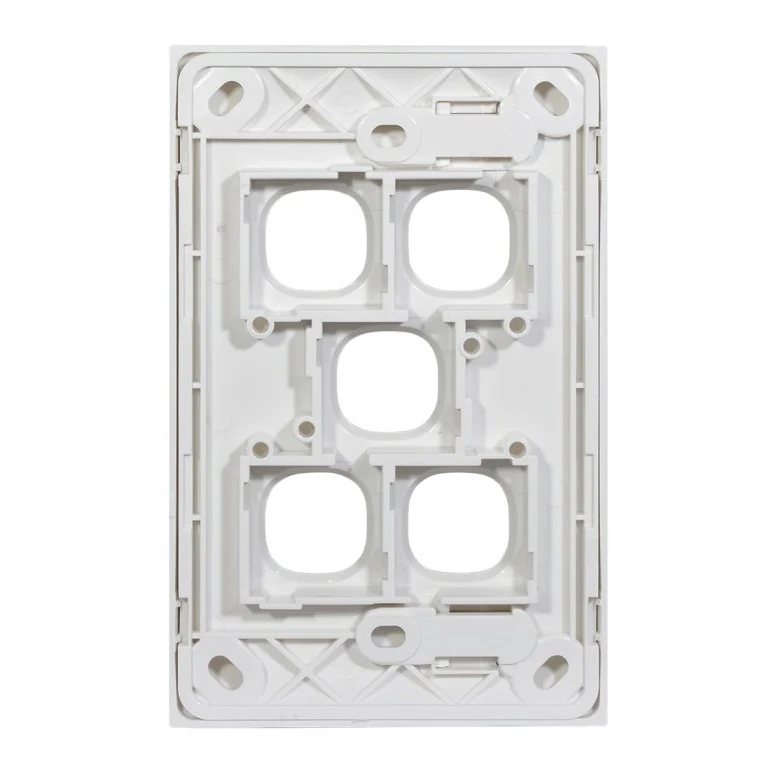

CLSWPV5** - 5 Gang Grid & Plate Switch Only

Compatible Mechanisms Range

If You Are Unsure What To Order, Then We Are Happy To Help. Please Call Us During Business Hours.

DOWNLOAD DOCUMENTS

Data Sheet

Range Flyer
